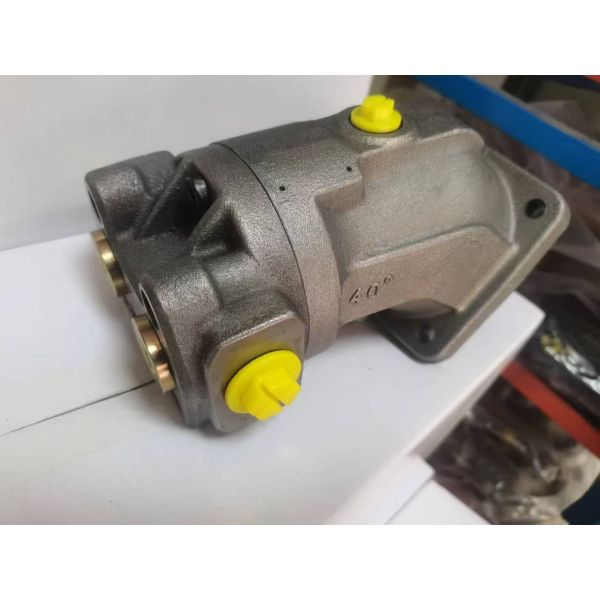

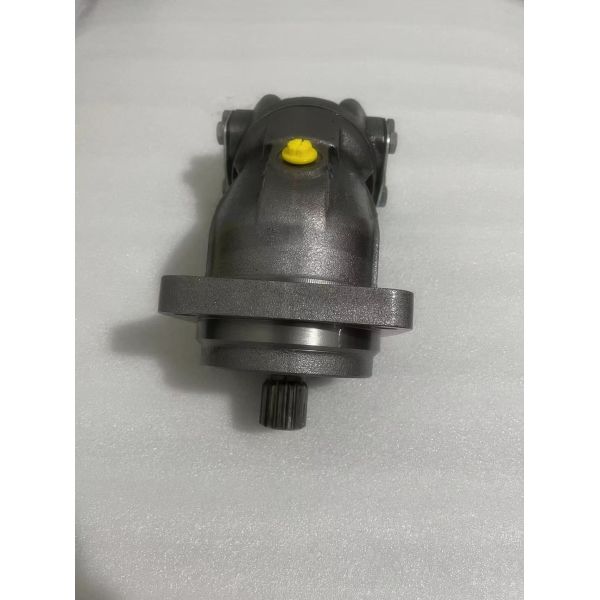

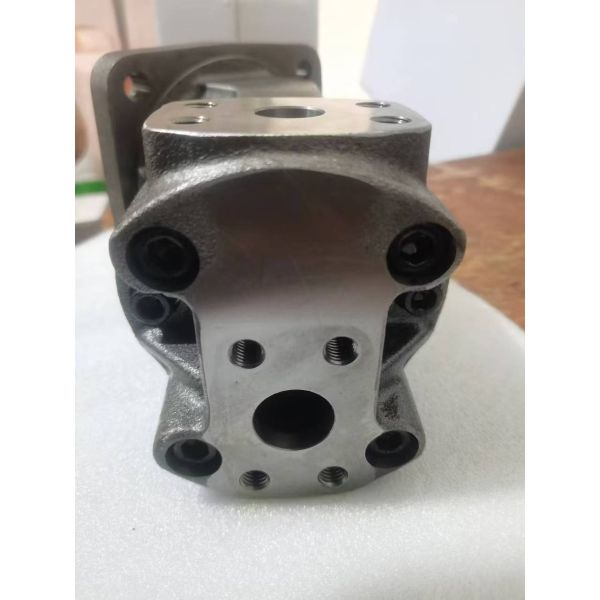

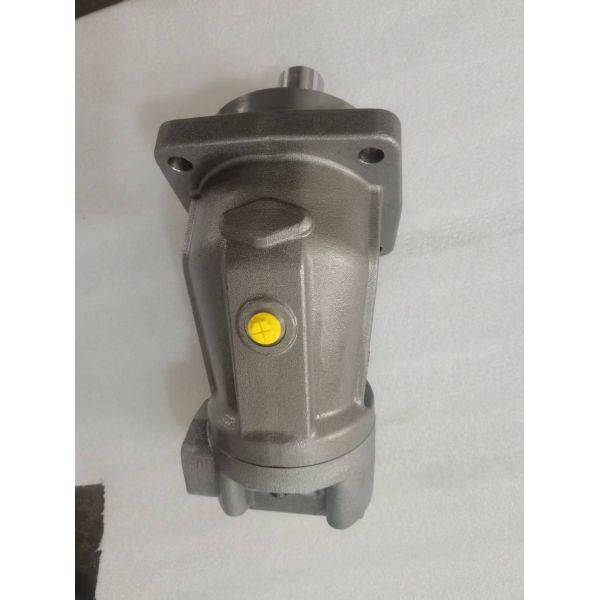

A2FO16,23,28,45,63,80,107,125,180cc Rexroth Hydraulic Pump for excavator
Product Description:
The Bosch Rexroth A2FO series represents high-performance fixed displacement axial piston pumps designed for demanding open and closed circuit applications. With a compact design and exceptional power density, these pumps deliver reliable operation in industrial and mobile machinery.
---
Key Features & Benefits:
· Fixed Displacement Design: Provides consistent flow output for applications requiring precise hydraulic power transfer
· High Pressure Capability: Operates at pressures up to 400 bar (5,800 psi)
· Multiple Size Options: Displacement ranges from 10 cm³/rev to 500 cm³/rev
· High Efficiency: Optimized hydraulics minimize energy loss through reduced internal leakage
· Robust Construction: Hardened steel components and precision manufacturing ensure long service life
· Multiple Mounting Options: Standard SAE and ISO mounting configurations available
---
Technical Specifications:
· Pressure Rating:
· Maximum Operating Pressure: 400 bar
· Peak Pressure: 450 bar
· Speed Range: Up to 3,000 rpm (depending on model)
· Fluid Compatibility: Mineral oils, synthetic fluids, and environmentally acceptable fluids
· Temperature Range: -40°C to +90°C (-40°F to +194°F)
· Noise Level: <78 dB(A) at 1500 rpm
---
Applications:
· Industrial hydraulic power units
· Mobile machinery hydraulic systems
· Machine tools and production equipment
· Presses and forming machinery
· Marine and offshore equipment
· Test stand and simulation systems
FAQ
Q:accept sample order or provide free sample ?
A:yes,we can provide sample ,when you order more pcs in your next order ,we can refund sample fee to you.
Q:what's package ?
A:our packing is neutral packing ,paper box or wooden box.
Q:what payment you can accept ?
A:/TT/western union/moneygram/alipay/ online payment
Q: have warranty ?
A: our all product have warranty half /one year,based on different products
Q: tested before shipping ?
A: yes ,tested each before shipping
Q:after payment when you can shipping the goods
A: after you pay ,about 1-3days can shipping your goods if have stock.
Q:how to confirm if the goods is what we want?
A:we can send you drawing and pictures to check to avoid mistake
| R900055284 | A2FO 32/61L-VBB050 |
| R900385883 | A2FO 32/61R-PAB05 |
| R987063133 | A2FO 32/61R-VAB05 |
| R902021587 | A2FO32/61L-PAB05 |
| R902193492 | A2FO32/61L-PAB05 |
| R902251625 | A2FO32/61L-PAB05 |
| R902203157 | A2FO32/61L-PAB05-S |
| R902021656 | A2FO32/61L-PBB05 |
| R902193356 | A2FO32/61L-PBB05 |
| R902193571 | A2FO32/61L-PBB05-S |
| R902204565 | A2FO32/61L-PBB05-S |
| R902021658 | A2FO32/61L-PBB06 |
| R902043716 | A2FO32/61L-VAB05 |
| R902253696 | A2FO32/61L-VAB05 |
| R902201681 | A2FO32/61L-VAB05 |
| R902155691 | A2FO32/61L-VAB05 |
| R902222145 | A2FO32/61L-VAB05 |
| R902018365 | A2FO32/61L-VAB05-S |
| R902161027 | A2FO32/61L-VAB05-S |
| R902193993 | A2FO32/61L-VAB05-S |
| R902040044 | A2FO32/61L-VBB05 |
| R902193855 | A2FO32/61L-VBB05 |
| R902208560 | A2FO32/61L-VBB05 |
| R902031581 | A2FO32/61L-VBB05-S |
| R902229123 | A2FO32/61L-VBB05-S |
| R902132078 | A2FO32/61L-VBB05-S |
| R902193487 | A2FO32/61L-VZB05-S |
| R902134693 | A2FO32/61L-VZB05-S |
| R909410193 | A2FO32/61R-PAB05 |
| R902193360 | A2FO32/61R-PAB05 |
| R902161424 | A2FO32/61R-PAB05 |
| R902193495 | A2FO32/61R-PAB05-S |
| R902204859 | A2FO32/61R-PAB05-S |
| R909410319 | A2FO32/61R-PAB06 |
| R909410198 | A2FO32/61R-PBB05 |
| R902222010 | A2FO32/61R-PBB05 |
| R902193524 | A2FO32/61R-PBB05-S |
| R902198270 | A2FO32/61R-PBB05-S |
| R902206512 | A2FO32/61R-PBB05-S |
| R909410320 | A2FO32/61R-PBB06 |
| R902198258 | A2FO32/61R-PBB06-S |
| R909441110 | A2FO32/61R-VAB05 |
| R902201633 | A2FO32/61R-VAB05 |
| R902222358 | A2FO32/61R-VAB05 |
| R909424706 | A2FO32/61R-VAB05-S |
| R902132080 | A2FO32/61R-VAB05-S |
| R902233148 | A2FO32/61R-VABXX-S |
| R902006626 | A2FO32/61R-VBB040-S |
| R902248450 | A2FO32/61R-VBB040-Y |
| R902226040 | A2FO32/61R-VBB040-Y |
| R909437243 | A2FO32/61R-VBB05 |
| R902197505 | A2FO32/61R-VBB05 |
| R902198271 | A2FO32/61R-VBB05 |
| R902229499 | A2FO32/61R-VBB05 |
| R902204523 | A2FO32/61R-VBB05 |
| R902227666 | A2FO32/61R-VBB05 |
| R902028568 | A2FO32/61R-VBB05-S |
| R902193572 | A2FO32/61R-VBB05-S |
| R902132082 | A2FO32/61R-VBB05-S |
| R902197955 | A2FO32/61R-VBB05-S |
| R909427049 | A2FO32/61R-VBB06 |
| R987201007 | A2FO32/61R-VBB06 |
| R902245607 | A2FO32/61R-VBB06 |
| R909446966 | A2FO32/61R-VZB05-S |
| R909418835 | AA2FO32/61 -NBD55 |
| R909423035 | AA2FO32/61 -NSD55 |
| R902047100 | AA2FO32/61L-NBD55 |
| R902043705 | AA2FO32/61L-VSD55 |
| R902047168 | AA2FO32/61R-NSD55 |
| R902205795 | AA2FO32/61R-NSD55 |
| R902043512 | AA2FO32/61R-VBD55 |
| R902161071 | AA2FO32/61R-VBD55 |
| R902153825 | AA2FO32/61R-VBD55 |
| R902205820 | AA2FO32/61R-VBD55 |
| R902040443 | AA2FO32/61R-VSD55 |
| R902153694 | AA2FO32/61R-VSD55 |
