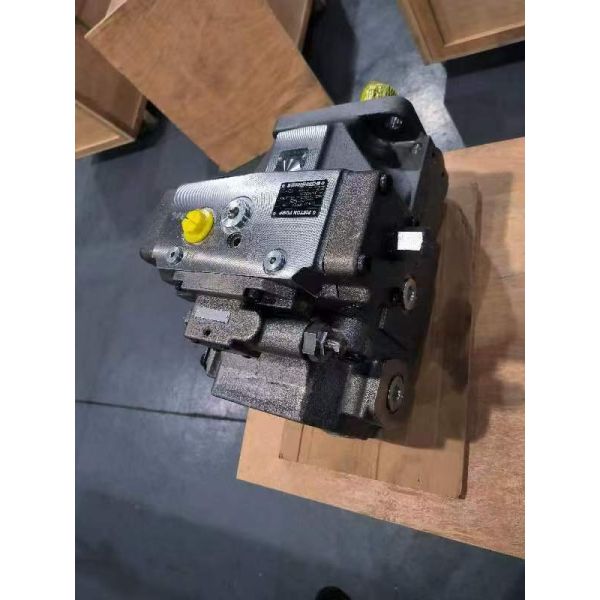

Rexroth A4VSO250 Axial Piston Pumps (Variable Displacement)
Product Overview: Bosch Rexroth A4VSO Axial Piston Pumps (Variable Displacement)
1. Features & Advantages
· High Efficiency: Optimized hydraulics and minimal internal losses result in exceptionally high volumetric and overall efficiency, reducing energy consumption and operating costs, especially in continuous operation.
· Variable Displacement: Allows for precise and continuous adjustment of flow rate to match system demands, eliminating the need for throttling losses and further enhancing energy savings.
· Robust Construction: Built with heavy-duty materials and precision manufacturing to ensure outstanding reliability and a long service life, even in the toughest operating environments.
· High Power Density: Compact design delivers high output power relative to its size and weight, saving valuable installation space.
· Low Noise Level: Advanced design features contribute to smooth and quiet operation, improving the working environment.
· Multiple Control Options: Offers a wide variety of control types (e.g., pressure dependent, hydraulic, electro-proportional) to provide optimal flexibility for any circuit design.
· Open Circuit Design: Specifically designed for open loop hydraulic systems.
2. Technical Specifications (Generic Overview)
Feature Specification
Type Axial Piston Pump, Variable Displacement
Series 40, 71, 125, 250, 355,500 (Number indicates nominal size)
Maximum Operating Pressure Up to 400 bar (5800 psi) - depending on model and control
Peak Pressure Up to 450 bar (6500 psi)
Displacement Volume From ~28 cm³/rev to ~500 cm³/rev (varies by series)
Speed Range Up to 3000 rpm (depending on size and inlet conditions)
Rotation Direction Clockwise or Counterclockwise (as viewed from the shaft end)
Fluid Mineral-based hydraulic oils to ISO VG 46 standards
Control Types HD (Pressure Dependent), EO (Electro-Proportional), LR (Power Control), EL (Electric Control), and more.
Note: Always refer to the specific data sheet for the exact model (e.g., A4VSO 180 HD) for precise technical data.
3. Available Controls (Examples)
The pump's functionality is defined by its control. Common options include:
· HD Control: Pressure control. Adjusts displacement to maintain a preset system pressure (pressure compensation).
· EO Control: Electro-proportional displacement control. Flow is adjusted via an electrical input signal (e.g., 0-10V, 4-20mA), enabling easy integration with PLCs.
· LR Control: Power-limiting control. Limits the drive power consumption by reducing flow when a preset pressure is reached.
· EL Control: Electric control. Uses a solenoid valve to switch between two pressure settings.
4. Typical Applications
A4VSO pumps are versatile and are found in numerous industries:
· Metal Forming: Injection molding machines, stamping presses, extrusion presses.
· Machine Tools: CNC machining centers, grinding machines.
· Test & Simulation: Material testing rigs, fatigue testing systems.
· Mobile Machinery: Advanced and large-scale mobile equipment (certain models).
· General Industrial Machinery: Presses, rollers, winches, and any system requiring high-pressure, variable flow.
5. Why Choose the A4VSO Pump?
· Proven Technology: Backed by Bosch Rexroth's global reputation for quality and innovation.
· Energy Savings: High efficiency translates directly to lower electricity costs and a reduced carbon footprint.
· Total Cost of Ownership: Exceptional durability and reliability minimize downtime and maintenance costs.
· System Integration: Easily integrates into complex hydraulic systems with a wide range of control options.
FAQ
Q:accept sample order or provide free sample ?
A:yes,we can provide sample ,when you order more pcs in your next order ,we can refund sample fee to you.
Q:what's package ?
A:our packing is neutral packing ,paper box or wooden box.
Q:what payment you can accept ?
A:/TT/western union/moneygram/alipay/ online payment
Q: have warranty ?
A: our all product have warranty half /one year,based on different products
Q: tested before shipping ?
A: yes ,tested each before shipping
Q:after payment when you can shipping the goods
A: after you pay ,about 1-3days can shipping your goods if have stock.
Q:how to confirm if the goods is what we want?
A:we can send you drawing and pictures to check to avoid mistake
Basic Info.
Model NO.
A4VSO180 A4VSO250 A4VSO355 A4VSO500
Structure
Axial Plunger Pump
Cylinder Number
Single Cylinder
Drive Mode
Hydraulic Driven Reciprocating Pump
Pump Shaft Position
Vertical
Application Scope
Metal Recycling Machine, Metal Cutting Machine...
Performance
100% to Original
Transport Package
Standard Export Wooden Case
Specification
Package in pcs
Production Capacity
500pieces/Year
